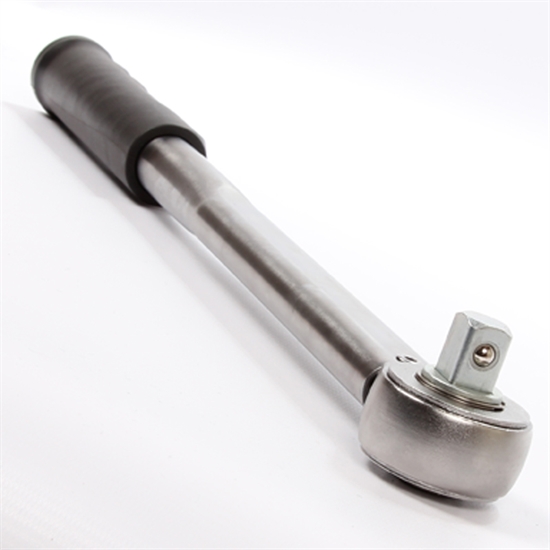

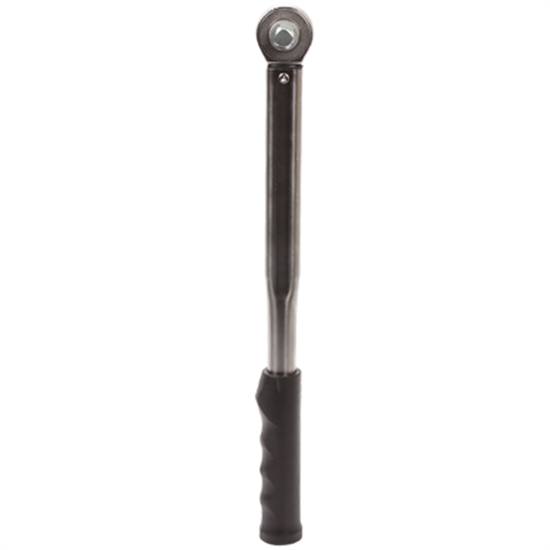

'P' Type Torque Wrenches are designed for the production environment where they will be set and then dedicated to a particular application. There is no scale, the wrench must be set against a torque testing device such as Norbar's Professional Torque Tester. The push-through ratchets on these models are robustly engineered for strength and durability. The strength and high wear resistance comes from a coarse tooth pattern while a principle of offset ratchet pawls gives a narrow engagement angle. The push-through square drive is not only a robust design but allows the wrench to be used for torque control in both the clockwise and anti clockwise directions, and allows for a wider model range of up to 400 N·m.
- Part number:
13055
- EAN Bar Code:
5060207560801
- NATO number:
-
- Accuracy:
±3%
- Operates between:
30.00 -
150.00
lbf·ft
40.00 -
200.00
N·m
Compare Products
Please select further products to compare.
- Features
-
Setting system is designed to discourage unauthorised alteration.
-

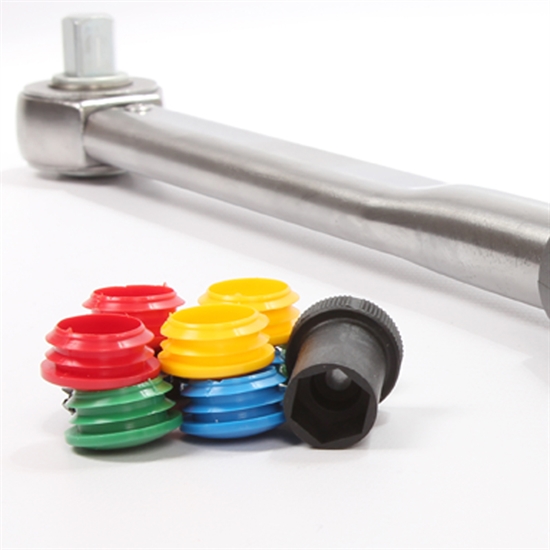

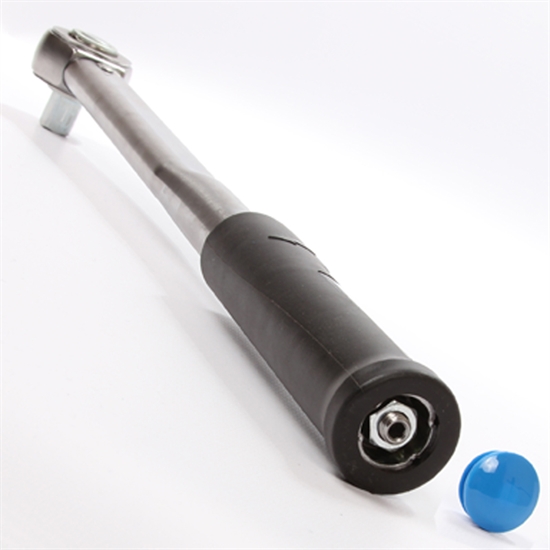

Coloured end seals are provided to identify the wrench to a particular operator, torque setting or calibration period.
-
Available with a high quality ratchet or as a 'Torque Handle'.
-
Supplied in a moulded box for storage and protection.
-

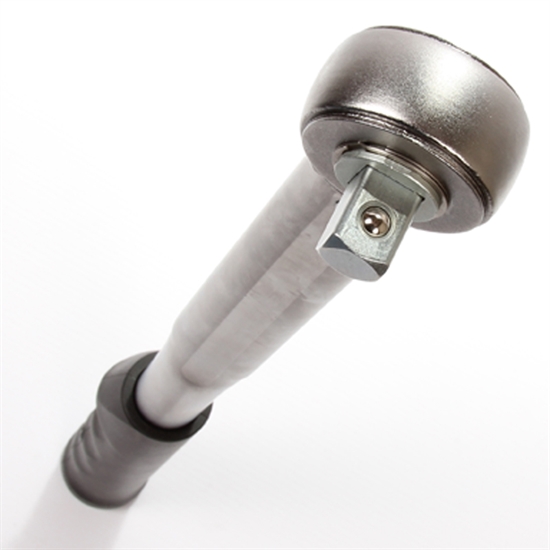

Retained square drive will not pull out of the head when the socket is removed
-
On request ‘P’ Type wrenches can be set, marked with the setting and certified for production line applications requiring a sealed torque setting. Only if a pre-set has been requested will the tool be supplied with a Declaration of Conformance
- Technical Specifications
-
Length: 422 mm
-
Square Size: 1/2"
-
Ratchet Teeth: 72
-
Ratchet Type: Industrial Push-Through
-
Ratchet Diameter: 42 mm
- Dimensions & Weights
- Tool Weight (kg): 0.95
- Packed Weight* (kg): 1.11
- Packed Width* (W) (mm): 447.00
- Packed Height* (H) (mm): 50.00
- Packed Depth* (D) (mm): 50.00
* Estimated
